Structured Extraction for App Enhancement

You've used AI to classify and summarize text. Now, get even more precise with Structured Extraction. This pulls specific pieces of information from unstructured text and places them exactly where needed in your app.

Use generateObject with a detailed Zod schema to extract appointment details from natural language input and display them using a v0-prototyped UI.

Project Setup

Continuing with the same codebase from Lesson 1.4. For this section, you'll find the extraction example files in the app/(4-extraction)/ directory.

The Problem: Turning Natural Language into Data

Imagine typing "Lunch with Sarah next Tuesday at noon at Cafe Central" and having it automatically create a perfect calendar event with all the details filled in. Apps like Fantastical pioneered this kind of natural language processing - it seems like magic, but that's structured extraction in action!

Loading diagram...

Manually parsing that input is a nightmare. Regex breaks easily, and complex parsing logic is brittle. But for an LLM? It's a natural fit. Models continue to improve giving better results at a lower cost.

Appointment Extraction Example
See how AI extracts structured appointment details from natural language

Schema:

z.object({
title: z.string().describe('The title of the event. Should be the main purpose, without names.'),
startTime: z.string().nullable().describe('Appointment start time in HH:MM format (e.g., 14:00 for 2pm).'),
endTime: z.string().nullable(),
attendees: z.array(z.string()).nullable().describe('List of attendee names.'),
location: z.string().nullable(),
date: z.string().describe('The date of the appointment in YYYY-MM-DD format.')
})

Object will appear here

Setup: The Appointment Extractor App

Let's get your environment ready.

  1. Run the Dev Server: Make sure it's running (pnpm run dev).
  2. Open the Page: Navigate to http://localhost:3000/extraction.

You'll see a simple UI: an input field to type appointment details and an empty calendar card below it (this is our CalendarAppointment component, built with Vercel v0. We'll explore this AI-powered UI generator in the next lesson).

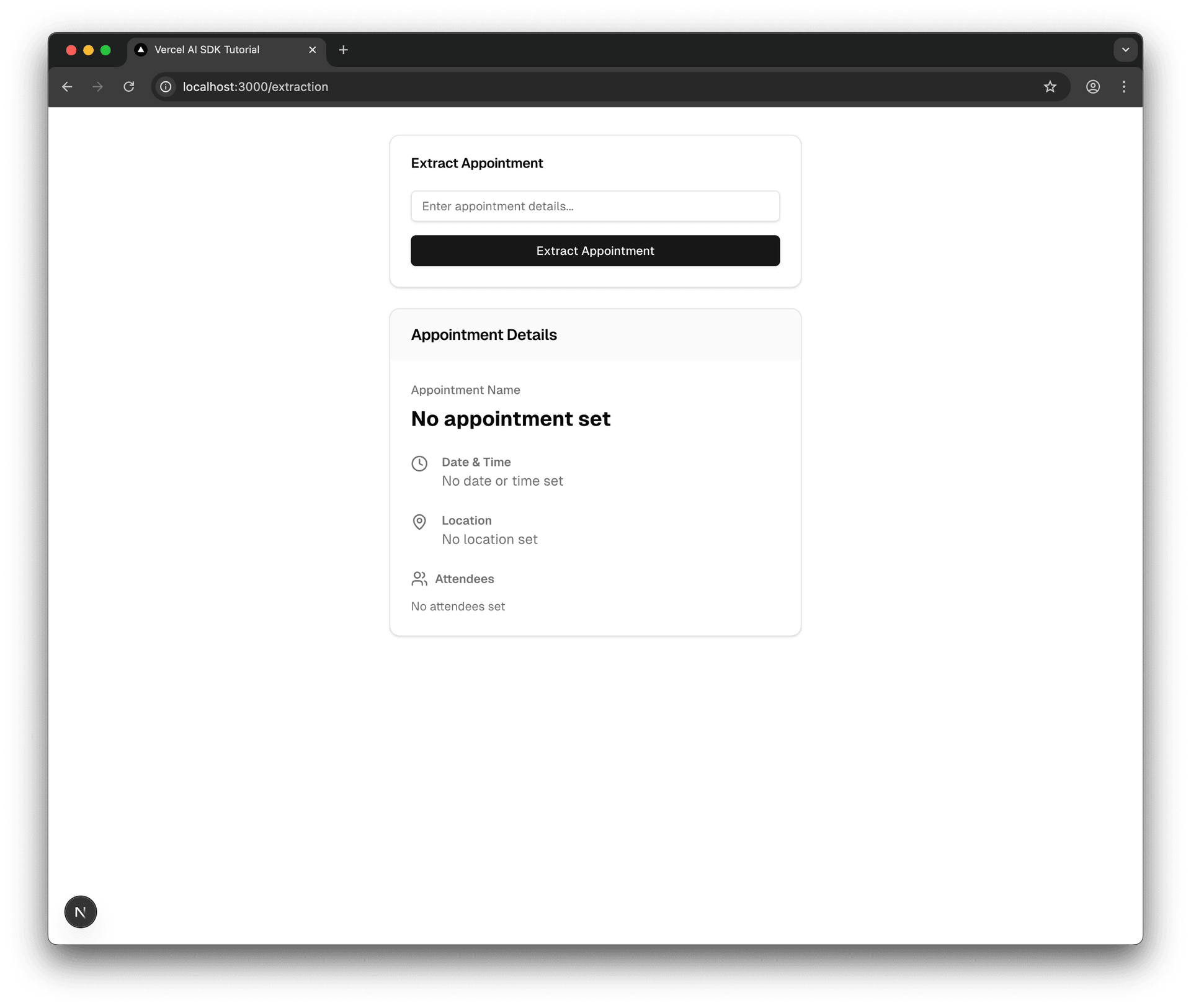

Screenshot of the '/extraction' page showing the input field and the empty 'CalendarAppointment' card.

Step 1: The Extraction Action (actions.ts)

Like before, you will use a Server Action to handle the AI call.

  1. Create schemas.ts: In app/(4-extraction)/extraction/, create the file schemas.ts.
  2. Start with this basic structure:
TypeScriptapp/(4-extraction)/extraction/schemas.ts
import { z } from 'zod';

// TODO: Define the appointmentSchema with these fields:
// - title (string)
// - startTime (string, nullable)
// - endTime (string, nullable)
// - attendees (array of strings, nullable)
// - location (string, nullable)
// - date (string, required)

// TODO: Export a type based on the schema using z.infer
  1. Now implement the schema:
TypeScriptapp/(4-extraction)/extraction/schemas.ts
import { z } from "zod";

export const appointmentSchema = z.object({
	title: z.string(),
	startTime: z.string().nullable(),
	endTime: z.string().nullable(),
	attendees: z.array(z.string()).nullable(),
	location: z.string().nullable(),
	date: z.string(),
});

export type AppointmentDetails = z.infer<typeof appointmentSchema>;

Why nullable() instead of optional()?

In our experience, explicitly requiring a field but allowing null (z.string().nullable()) often yields more reliable results from LLMs than making the field entirely optional (z.string().optional()). It forces the model to consider the field and consciously decide if the information is present or not.

  1. Create actions.ts: In app/(4-extraction)/extraction/, create the file actions.ts.
  2. Start with the basic setup:
TypeScriptapp/(4-extraction)/extraction/actions.ts
'use server';

import { generateObject } from 'ai';
import { appointmentSchema, type AppointmentDetails } from './schemas';

export const extractAppointment = async (
  input: string,
): Promise<AppointmentDetails> => {
  console.log(`Extracting from: "${input}"`);

  // TODO: Use generateObject to extract appointment details
  // - Model: 'openai/gpt-4.1'
  // - Prompt: Ask to extract appointment details from the input
  // - Schema: Use the appointmentSchema
  // - Return the extracted details
};
  1. Now implement the extraction:
TypeScriptapp/(4-extraction)/extraction/actions.ts
"use server";

import { generateObject } from "ai";
import { appointmentSchema, type AppointmentDetails } from "./schemas";

export const extractAppointment = async (
	input: string,
): Promise<AppointmentDetails> => {
	console.log(`Extracting from: "${input}"`);

	const { object: appointmentDetails } = await generateObject({
		model: "openai/gpt-4.1",
		prompt: `Extract the appointment details from the following natural language input:\n\n"${input}"`,
		schema: appointmentSchema,
	});

	console.log("Extracted details:", appointmentDetails);
	return appointmentDetails;
};

Step 2: Connecting the Frontend (page.tsx)

No you'll make the form work.

  1. Open app/(4-extraction)/extraction/page.tsx. The basic UI is already set up.

  2. Add the necessary imports and state at the top of the file (after the existing imports):

Reactapp/(4-extraction)/extraction/page.tsx
// Add these imports
import { extractAppointment } from './actions';
import { type AppointmentDetails } from './schemas';

// Inside the component, add state for the appointment data
const [appointment, setAppointment] = useState<AppointmentDetails | null>(null);
  1. Replace the handleSubmit function with the actual implementation:
Reactapp/(4-extraction)/extraction/page.tsx
const handleSubmit = async (e: React.FormEvent<HTMLFormElement>) => {
  e.preventDefault();
  setLoading(true);
  setAppointment(null); // Clear previous results

  const formData = new FormData(e.target as HTMLFormElement);
  const input = formData.get('appointment') as string;

  try {
    const result = await extractAppointment(input);
    setAppointment(result);
  } catch (error) {
    console.error('Extraction failed:', error);
    // TODO: Show error to user
  } finally {
    setLoading(false);
  }
};
  1. Pass the appointment data to the CalendarAppointment component:

Find the line with <CalendarAppointment appointment={null} /> and replace it with:

<CalendarAppointment appointment={appointment} />

The complete page.tsx file should look like this:

Reactapp/(4-extraction)/extraction/page.tsx
"use client";

import { useState } from "react";
import { Card, CardContent, CardHeader, CardTitle } from "@/components/ui/card";
import { Input } from "@/components/ui/input";
import { Button } from "@/components/ui/button";
import { CalendarAppointment } from "./calendar-appointment";
import { extractAppointment } from "./actions";
import { type AppointmentDetails } from "./schemas";

export default function Page() {
	const [loading, setLoading] = useState(false);
	const [appointment, setAppointment] = useState<AppointmentDetails | null>(
		null,
	);

	const handleSubmit = async (e: React.FormEvent<HTMLFormElement>) => {
		e.preventDefault();
		setLoading(true);
		setAppointment(null); // Clear previous results

		const formData = new FormData(e.target as HTMLFormElement);
		const input = formData.get("appointment") as string;

		try {
			const result = await extractAppointment(input);
			setAppointment(result);
		} catch (error) {
			console.error("Extraction failed:", error);
			// TODO: Show error to user
		} finally {
			setLoading(false);
		}
	};

	return (
		<div className="max-w-lg mx-auto px-4 py-8">
			<div className="flex flex-col gap-6">
				<Card>
					<CardHeader>
						<CardTitle>Extract Appointment</CardTitle>
					</CardHeader>
					<CardContent>
						<form onSubmit={handleSubmit} className="space-y-4">
							<Input
								name="appointment"
								placeholder="Enter appointment details..."
								className="w-full"
							/>
							<Button type="submit" className="w-full" disabled={loading}>
								{loading ? "Extracting..." : "Extract Appointment"}
							</Button>
						</form>
					</CardContent>
				</Card>
				<CalendarAppointment appointment={appointment} />
			</div>
		</div>
	);
}

Step 3: Run and Observe (Initial Extraction)

Let's test it! Go to http://localhost:3000/extraction.

Enter: Meeting with Guillermo Rauch about Next Conf Keynote Practice tomorrow at 2pm at Vercel HQ

Click "Extract Appointment".

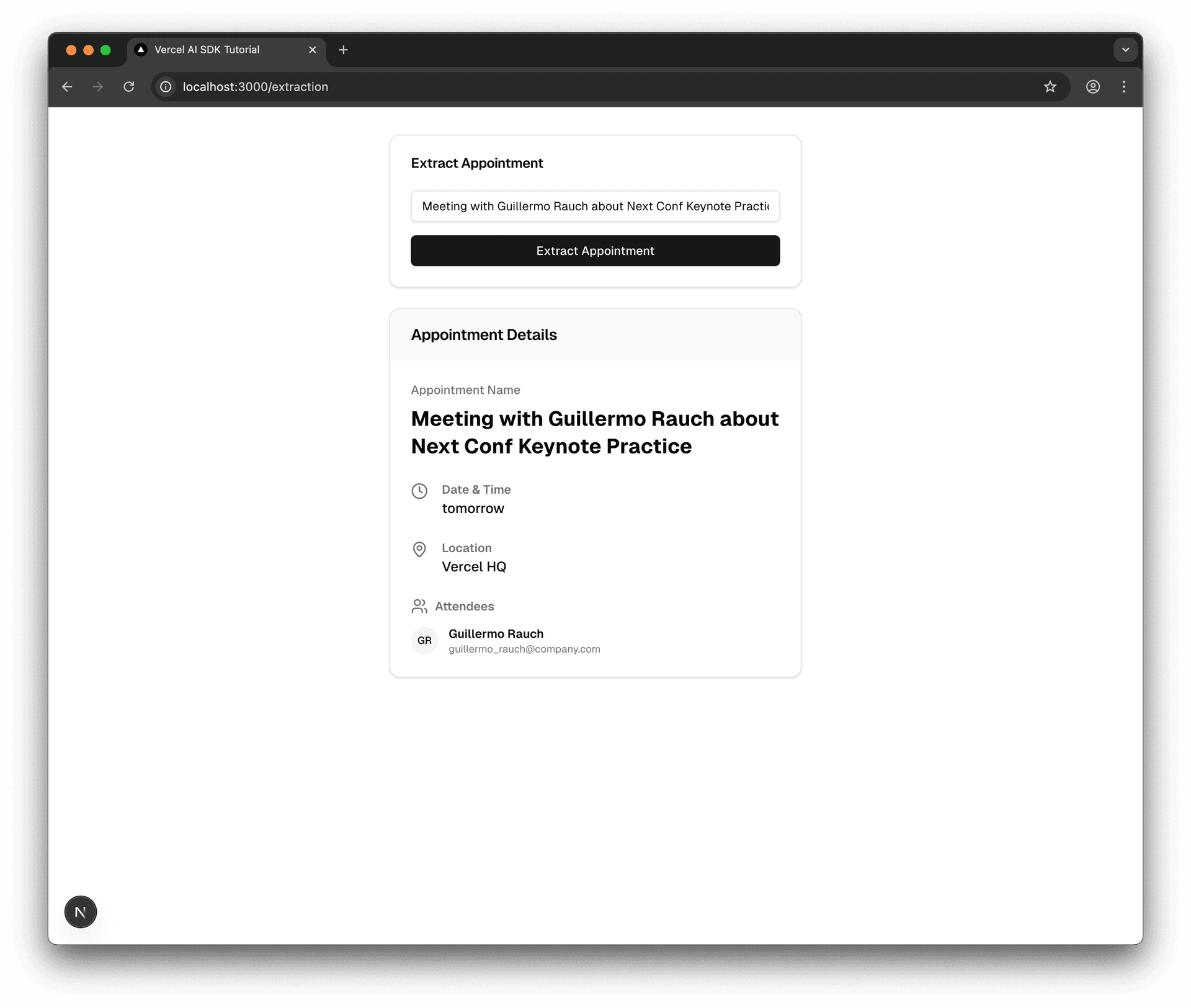

Screenshot of the '/extraction' page showing the initial extraction results

The initial results might be okay, but not perfect (e.g., title includes names, date is wrong, time format is basic).

Step 4: Refining with .describe() - The Key!

The initial results might work, but they could be imperfect (e.g., title includes names, date might be wrong, time format is basic).

Let's improve our extraction using .describe() in our Zod schema. Update your schemas.ts:

TypeScriptapp/(4-extraction)/extraction/schemas.ts
export const appointmentSchema = z.object({
  title: z.string().describe(
    'The title of the event. Should be the main purpose, concise, without names. Capitalize properly.'
  ),
  startTime: z
    .string()
    .nullable()
    .describe('Appointment start time in HH:MM format (e.g., 14:00 for 2pm).'),
  endTime: z.string().nullable().describe(
    'Appointment end time in HH:MM format. If not specified, assume a 1-hour duration after startTime.'
  ),
  attendees: z.array(z.string()).nullable().describe(
    'List of attendee names. Extract first and last names if available.'
  ),
  location: z.string().nullable(),
  date: z.string().describe(
    `The date of the appointment. Today's date is ${new Date().toISOString().split('T')[0]}. Use YYYY-MM-DD format.`
  ),
});

Key refinements:

  • Title: Clear instructions to exclude names and be concise
  • Time: Specific format requirements (24-hour HH:MM)
  • Date: Provides today's date for correct relative date calculation
  • Attendees: Instructions on extracting full names

Save schemas.ts, refresh the browser, and test again with the same input. The extraction should now be much more accurate!

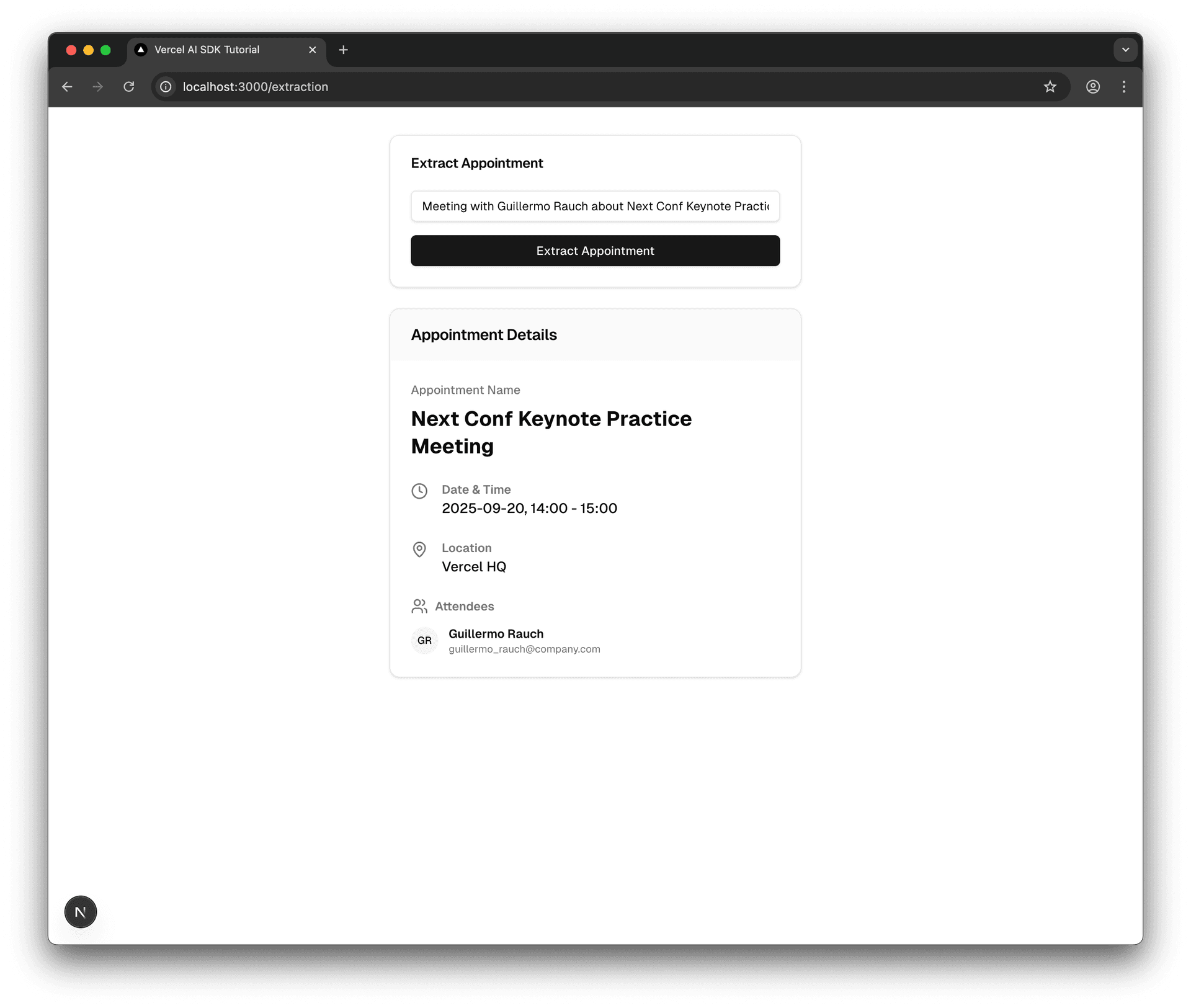

Screenshot of the '/extraction' page showing the refined extraction results

Key Things to Consider

  • Structured Extraction pulls specific data points from unstructured text into a defined format.
  • generateObject + Zod Schema is the ideal tool combination.
  • Use nullable() for potentially missing fields.
  • .describe() is essential for specifying formats, providing context (like today's date), and defining default logic.
  • Sharing Zod schemas between backend (actions) and frontend provides end-to-end type safety.

Next Step: Supercharge UI with Vercel v0

You've seen how structured data enables powerful features. Now, take a quick (optional) detour to explore Vercel v0, the tool that was used to prototype the CalendarAppointment UI in this example. You'll get hands-on experience generating UI components directly from prompts, accelerating your frontend development for AI features.
